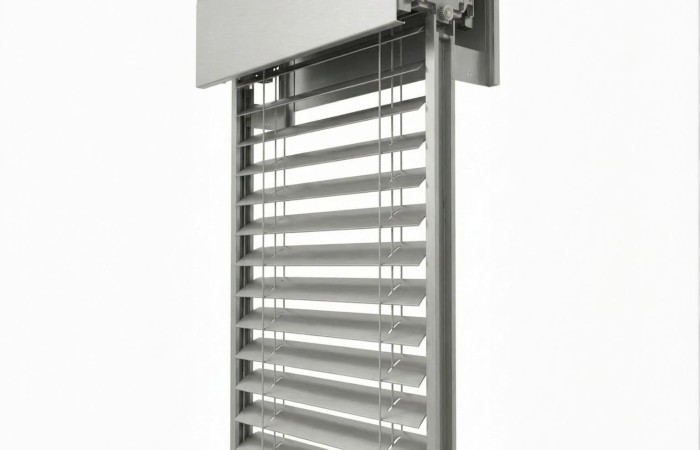

The EC 100 Venetian blind, with its 100 mm slats, offers a slightly more pronounced visual presence while maintaining an extraordinarily flat and elegant line. Its lightweight construction and minimal guide profiles integrate subtly into the facade, maximizing outward views and respecting the building's architecture.
It is ideal for large glazed areas where optimal regulation of natural light, protection against glare, and privacy are required, without sacrificing a neat and sophisticated exterior appearance.
Technical Features and Options
Based on the technical information, here are its main characteristics and customization possibilities:
Dimensions and Resistance
- Suitable for large-format windows:
- Maximum width: 4.5 m
- Maximum height: 4.25 m
- Maximum area: 9 m²
- Wind certification: Class 5 (resists up to 76 km/h)
Slat Guide Systems
- Cable guidance: Uses a PVC-coated steel cable just 2.5 mm in diameter. It is the most discreet, almost invisible option, offering maximum architectural freedom.
- Rail guidance: Uses an extruded aluminum rail that guarantees silent and stable operation. It is available in multiple colors and shapes (round, straight).
Installation Options
- Recessed installation (in the reveal): The blind integrates completely into the window recess, becoming invisible when retracted. Perfect for renovations where space is limited.
- Surface-mounted installation (on the facade): It is installed in front of the facade with a protective box that hides the assembly when the venetian blind is raised.
Customization and Comfort
- Micro-perforated slats: Allow maintaining some visibility and natural light passage even when the blind is lowered and closed (5% perforation).
- Ventilation position: Special function that prevents abrupt darkening when lowering the blind, maintaining natural light in the room until complete closure.
- Wide range of colors: Slats, guides, box panels, and hoods can be customized in an extensive range of colors using a weather-resistant powder coating system.
- Drive types: Manual (with crank) or motorized, integrable into home automation solutions (Smart Home) for automatic control based on light, wind, or temperature.
- Acoustic panel: Patented option that reduces noise transmission, ideal for semi-detached houses or urban areas.
The EC 100 Venetian Blind is much more than a simple venetian blind: it is a high-performance technical system wrapped in a minimalist design. For your "Persianas" website, you can present it as the premium solution for projects that value clean architectural aesthetics without compromising functionality, protection, and energy efficiency.
Installation Method
| Installation Method | Description and Key Features |
|---|---|
| Recessed Installation (In the reveal) | The blind integrates completely inside the window recess. When raised, it becomes invisible, offering a clean and clear facade appearance. • Guide Types: Conventional guides (individually mounted guides) or a self-supporting fixed guide system can be used. The latter facilitates installation by connecting the frame directly to the already fixed guides and helps protect the thermal insulation of the recess. |

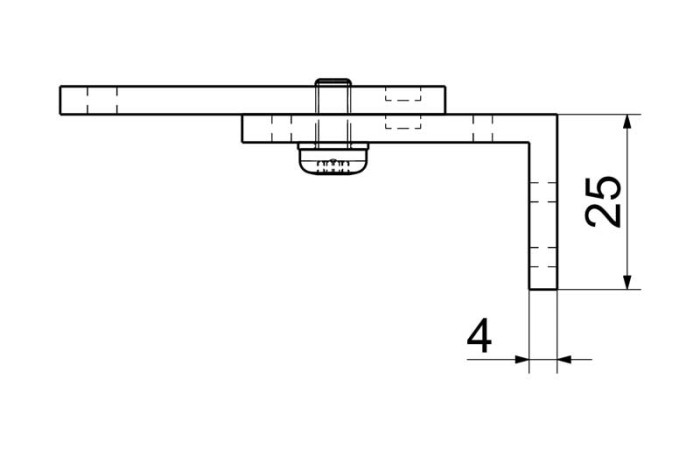

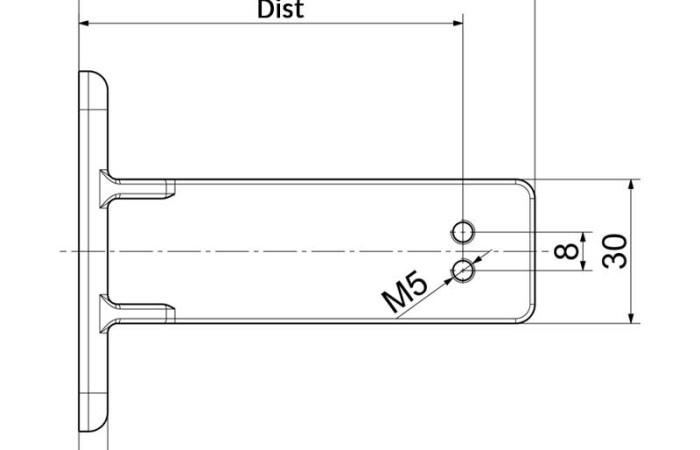

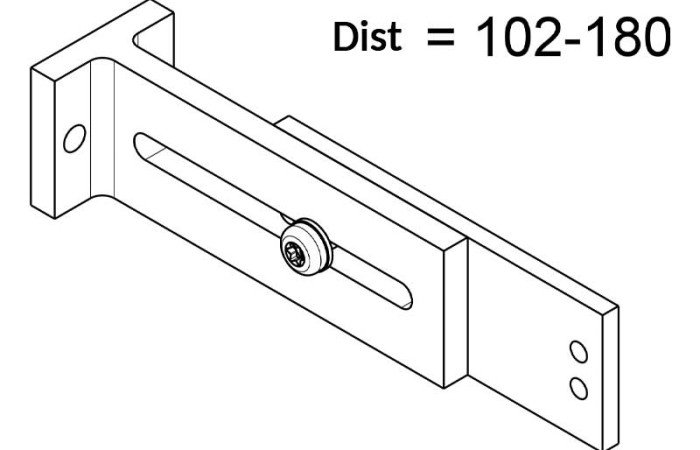

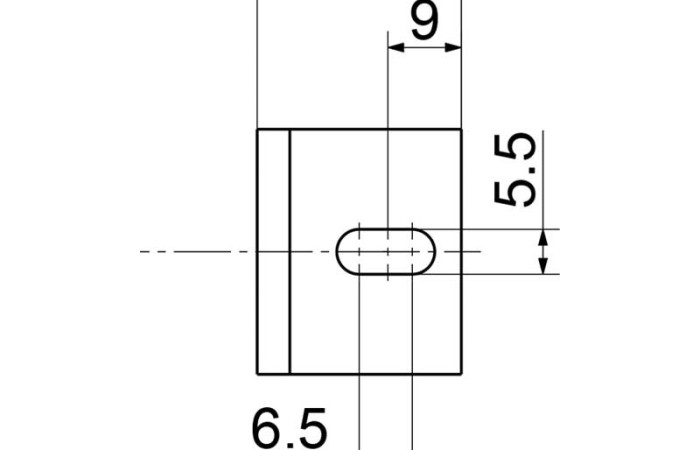

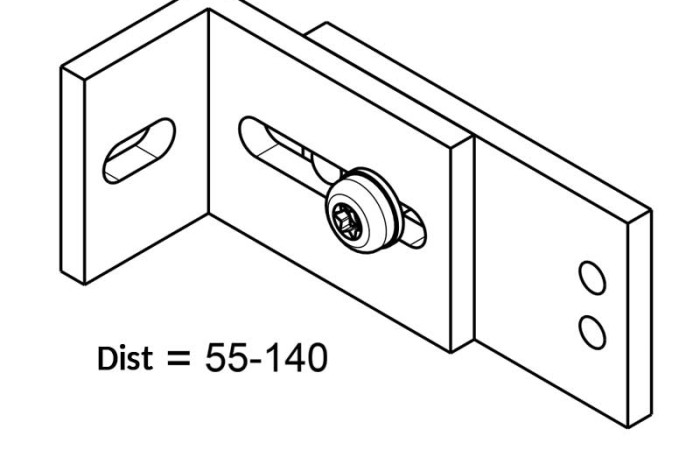

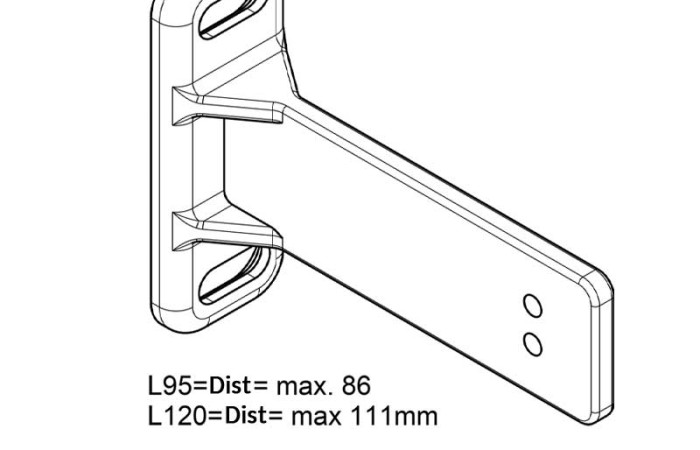

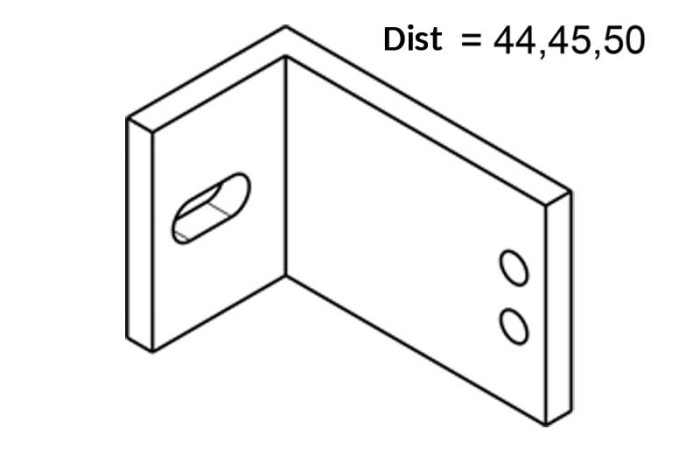

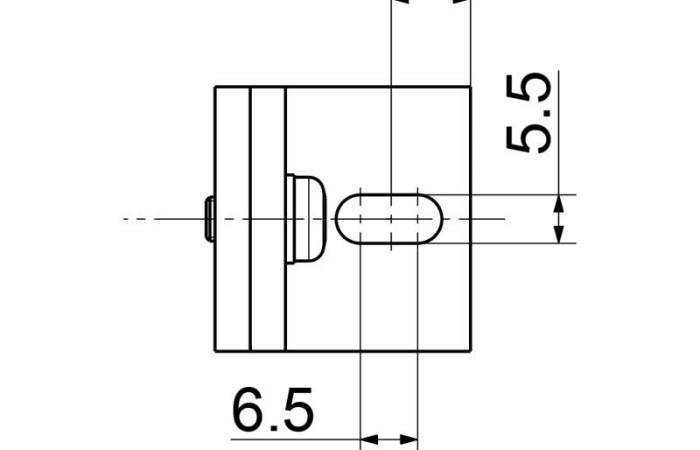

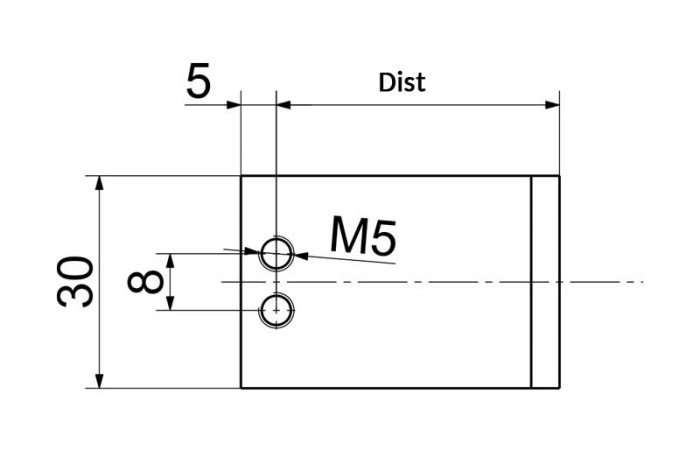

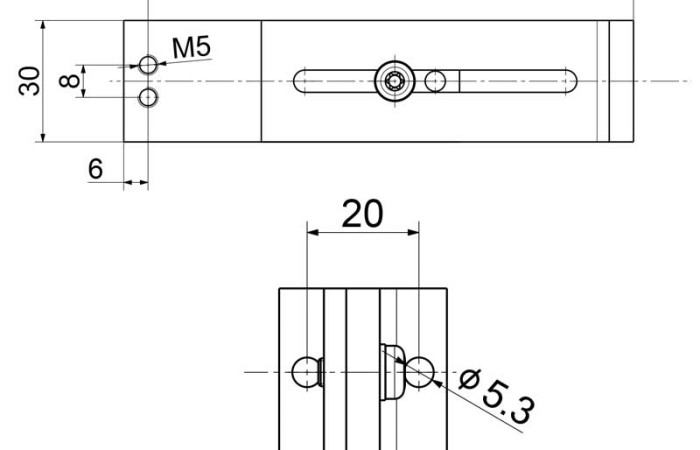

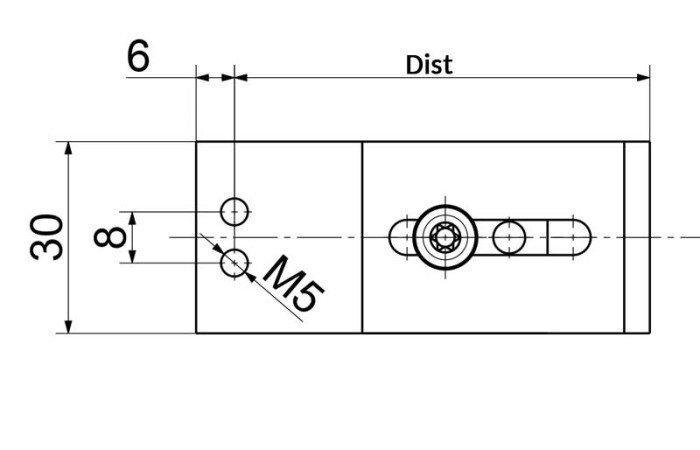

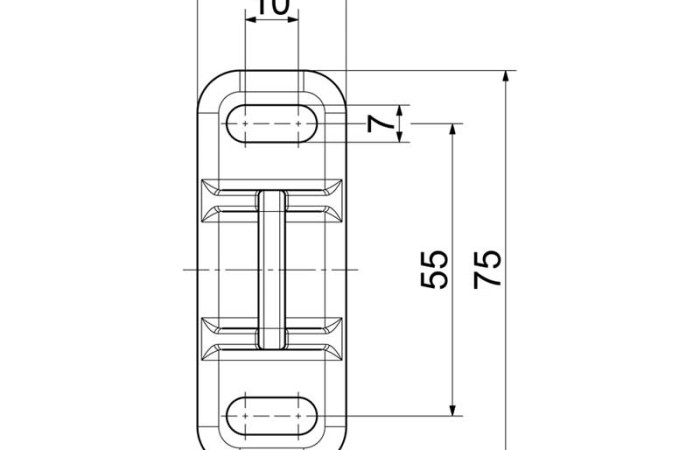

| Surface-Mounted Installation (On the facade) | The blind is mounted in front of the facade plane. To protect the mechanism when raised, an additional hood/box is installed, available in several colors and shapes. • Guide System: The self-supporting fixed guide system is generally used, mounted on the facade with guide brackets. |
Summary Technical Data
- Maximum height (H): 4,250 mm
- Maximum width (W): 4,500 mm
- Maximum area: 9 m²
- Wind classification: Up to 76 km/h (Class 5)
