Motor de persiana T5 E Hz

Print
Categoría: Motorización

Rangos de motor

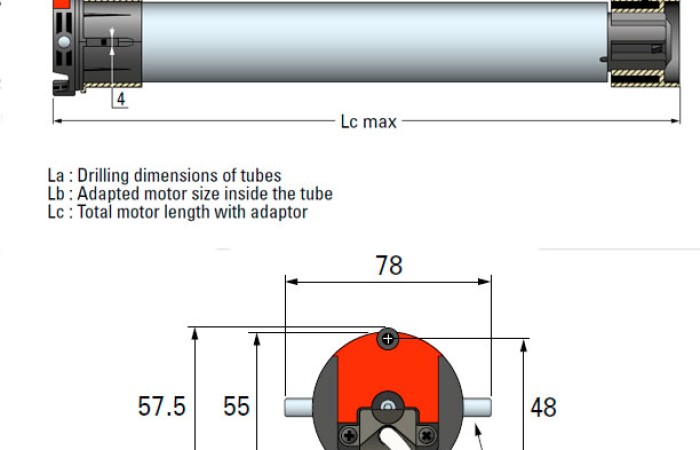

Descripción Par Velocidad Potencia Corriente La Lb Lc Peso
T5 EHz EH - 10/17 10 Nm 17 rpm 120 W 0,5 A 583 mm 596 mm 619 mm 2,01 Kg
T5 EHz EH - 20/17 20 Nm 17 rpm 160 W 0,75 A 657 mm 670 mm 693 mm 2,39 Kg
T5 EHz EH - 50/12 50 Nm 12 rpm 240 W 1,1 A 657 mm 670 mm 693 mm 2,7 Kg



Pedir información del producto
