Motor de persiana T5 E BHz

Print
Categoría: Motorización

Rangos de Motores



ALIMENTACIÓN 230V - 50 Hz, CABLE DE 2.5 METROS

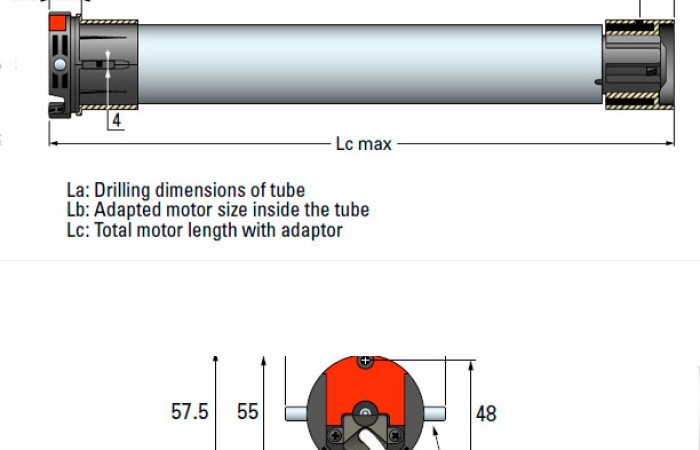

Descripción Torque Velocidad Potencia Corriente La Lb Lc Peso
T5EBHZ 10 Nm 17 rpm 120 W 0.5 A 583 mm 596 mm 619 mm 2.01 Kg
T5EBHZ 20 Nm 17 rpm 160 W 0.75 A 657 mm 670 mm 693 mm 2.39 Kg
T5EBHZ 50 Nm 12 rpm 240 W 1.1 A 657 mm 670 mm 693 mm 2.7 Kg

Pedir información del producto
