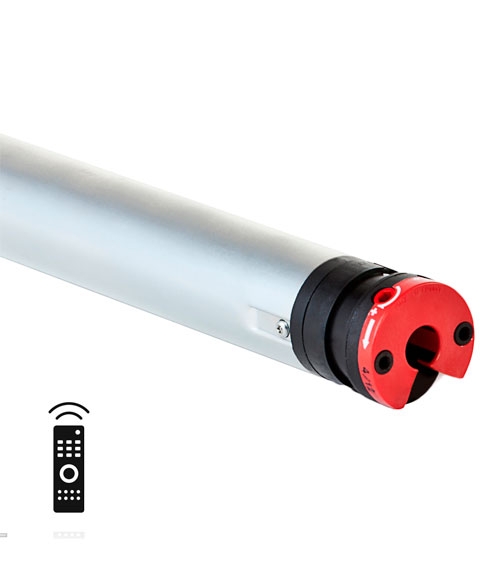

Roller shutter T3.5 EHz DC
DIRECT CURRENT & RADIO ELECTRONICS, Ø 40 MM.
Low voltage power supply through battery... for wet areas or in the absence of electrical supply.
MOTOR WITH BUILT-IN SIMU-Hz RADIO RECEIVER. ELECTRONIC END-LIMIT SYSTEM, with 4 possible setting modes for the end-limits.
STOP ON OBSTACLE FUNCTION & FROST DETECTION FUNCTION... the motor stops during opening if the shutter curtain is stuck in the guide rails due to frost or if the bottom lath is locked.
INTERMEDIATE POSITION FUNCTION, it is possible to save the user's favorite position.
Motor Ranges

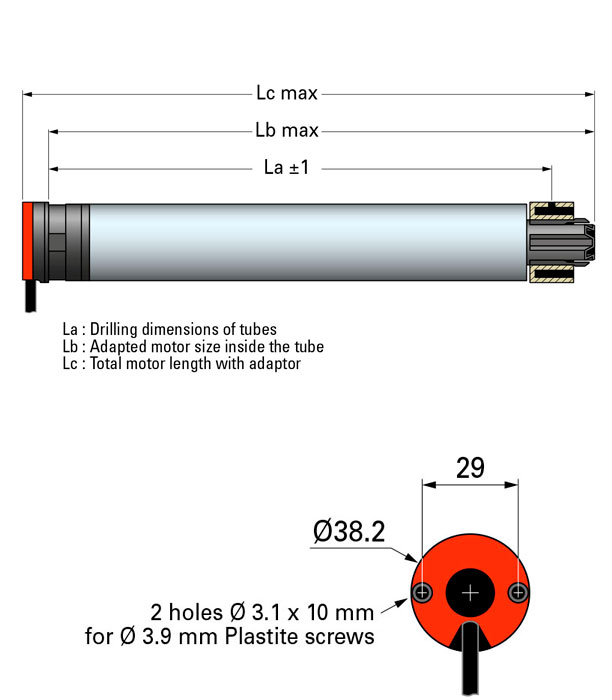

| Description | Torque | Speed | Power | Current | La | Lb | Lc | Weight |
| T3.5 EHz DC - 3/23 | 3 Nm | 23 rpm | 17 W | 1.4 A | 433 mm | 457 mm | 471 mm | 0.77 Kg |
| T3.5 EHz DC - 6/18 | 6 Nm | 18 rpm | 26 W | 2.2 A | 433 mm | 457 mm | 471 mm | 0.8 Kg |
| T3.5 EHz DC - 10/12 | 10 Nm | 12 rpm | 30 W | 2,4 A | 433 mm | 457 mm | 471 mm | 0.8 Kg |
New Features: -
ADJUSTMENT OF END LIMIT WITH REDUCED SPEED in manual mode to facilitate configuration. -
SOFT START AND STOP FUNCTION: The motor starts and stops slowly when reaching the upper and lower limits.
MOTOR SLEEP AND WAKE MODES ARE DIRECTLY CONTROLLED FROM THE TRANSMITTER... no need to access the battery. The motor can also be activated directly on-site from the transmitter. -
MOTOR CABLE, black BBF, 20 cm, 2 connectors with error-proofing for a direct connection to the battery and the solar panel. - COMPATIBILITY with sequential and functional transmitters.
