Self-locking extruded slat, 65 mm.



65mm high slat made of structured extruded aluminum to prevent opening from the outside.

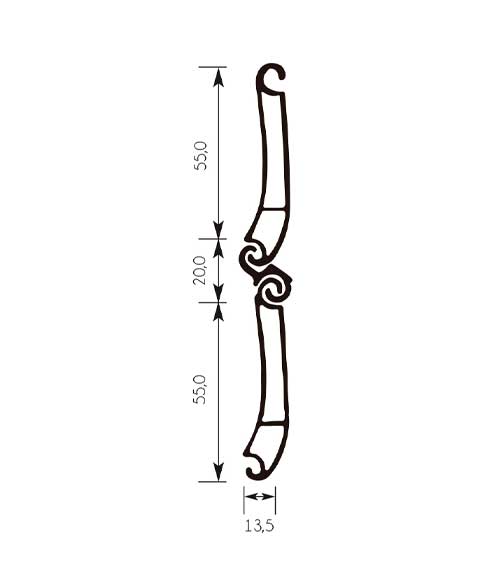

Curved profile slat with a thickness of 13.5mm and a slat pitch of 65.5mm. It can support an approximate weight of 11.80 Kg/m² and has a slat height per linear meter of 15-



Slat Height 65.5 mm.
Thickness 13.5 mm.
Approximate Weight 11.80 Kg/m²
Number of slats per meter height 15.0
Maximum Recommended Width 4.25 m.
Maximum Recommended Height 3.00 m
Minimum Axis Diameter for Rolling 89 mm









Height of blind in cm Rolling on axis
From To Diameter 70
0 160 205 mm
160 200 220 mm
200 240 240 mm
240 280 255 mm
280 320 270 mm
320 360 285 mm
360 400 295 mm
400 460
460 500
