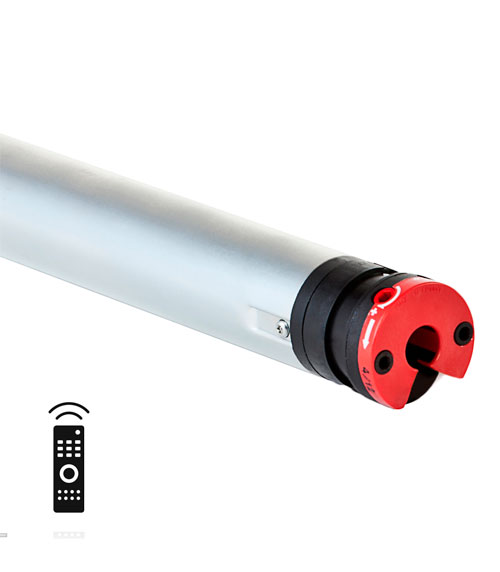

Roller shutter T5 E BHz



RADIO ELECTRONIC, Ø 50 MM

MOTOR WITH BUILT-IN BIDIRECTIONAL RADIO SIMU-BHz …a real time follow-up of your installation directly on smartphone with The motor gives its position on your smartphone.

ELECTRONIC END-LIMIT SYSTEM …4 possible setting modes of the end-limits (see below). STOP ON OBSTACLE FUNCTION …the motor stops during the closing in the case of an obstacle.

FROST DETECTION FUNCTION …the motor stops during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.

INTERMEDIATE POSITION FUNCTION …it is possibe to record a user’s favorite position.

SIMPLE PROGRAMMING …SIMU-Hz/SIMU-BHz continuity: your installation and programming habits remain the same as those of SIMU-Hz technology.

Motor Ranges

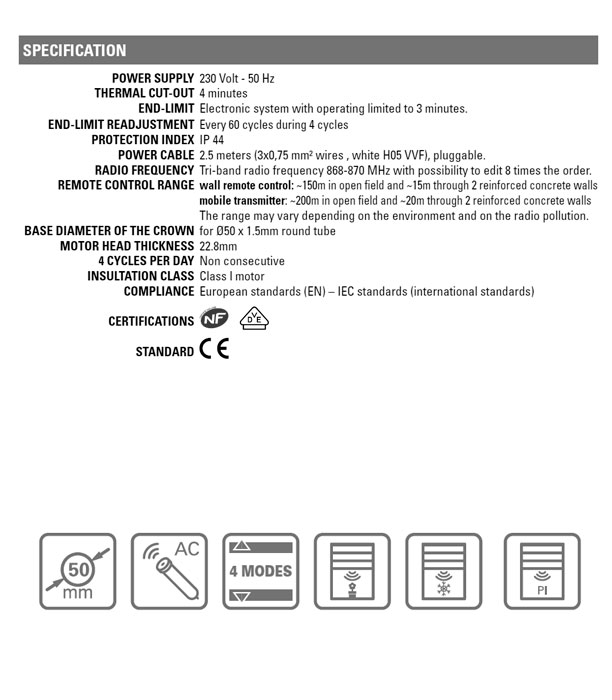

POWER SUPPLY 230V - 50 Hz, CABLE 2.5 METERS

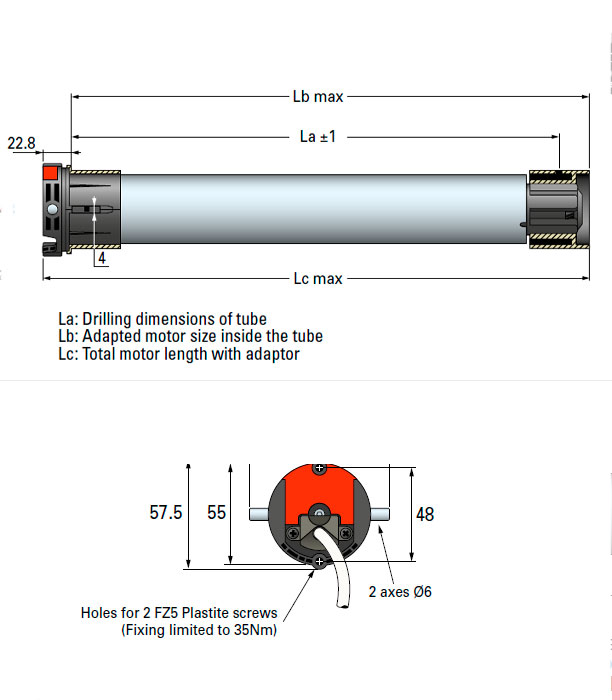

Description Torque Speed Power Current La Lb Lc Weight
T5EBHZ 8 Nm 17 rpm 100 W 0.45 A 583 mm 596 mm 619 mm 1.96 Kg
T5EBHZ 10 Nm 17 rpm 120 W 0.5 A 583 mm 596 mm 619 mm 2.01 Kg
T5EBHZ 15 Nm 17 rpm 140 W 0.65 A 583 mm 596 mm 619 mm 2.27 Kg
T5EBHZ 20 Nm 17 rpm 160 W 0.75 A 657 mm 670 mm 693 mm 2.39 Kg
T5EBHZ 25 Nm 17 rpm 170 W 0.8 A 657 mm 670 mm 693 mm 2.48 Kg
T5EBHZ 35 Nm 17 rpm 240 W 1.1 A 657 mm 670 mm 693 mm 2.67 Kg
T5EBHZ 50 Nm 12 rpm 240 W 1.1 A 657 mm 670 mm 693 mm 2.7 Kg
